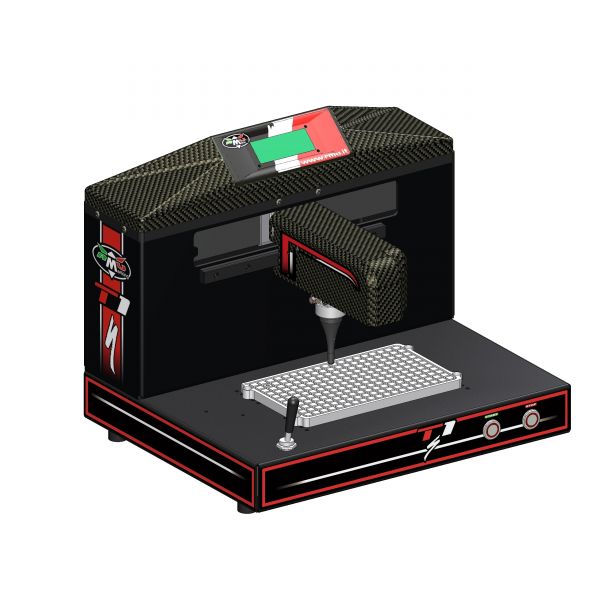

T1點錘頭打標機
T1點錘頭打標機 -
T1點錘頭打標機
- 生產廠商及品牌名稱RMU
- 設備型號及加工參數
- 參考價格范圍
主要應用于重型及不便移動的工件打標，用手提著打標頭即可完成打標工作，典型應用于汽車行業的車架、發動機等。工作噪音低，控制系統模塊化設計， 維護方便；系統具備手動及智能故障檢測報警功能，工作安全穩定。
We design and build the widest range of machines for permanent marking. Our heads, control electronics or mechanics are entirely created in Italy by our establishment. This allows us to respond quickly to customer needs and offer an excellent after-sales service.
我們設計生產最廣范的具有持久效果的打標機。我們的打標頭，控制電路和機械裝置都在意大利生產，因此對于客戶的需求我們可以更加快速的反應并提供優質服務。
All our solutions are provided with sphere recirculation linear guides and sphere recirculation screw. Thanks to these solutions RMU machines offer a great warranty in time.
我們所有的方案都提供了球形再循環線性導軌和螺釘。因此RMU設備能夠及時提供保修服務。
| MARKING AREA 打標面積 | 100X180 MM |
| TIP DRIVE TECHNOLOGY 尖端驅動技術 | PNEUMATIC MICROPERCUSSION/氣動微沖 PNEUMATIC 0-8 bar OR 6-12 bar 氣動0-8磅或者6-12磅 |
| MARKING SPEED 打標速度 | UP TO 6 CHARACTERS PER SECOND 最高每秒6個字符 |
| SUPERFICIAL HARDNESS OF MATERIALS 材料表面硬度 | UP TO 63 HRC 最高可達63 HRC |
| NOISE LEVEL AT EMPTY 噪音 | UP TO 63 DB 最大63分貝 |
| MARKING HEAD WEIGHT 打標頭重量 | 4.8KG |
| SPECIAL FEATURES 特點 | BORN TO MARK SILK SCREEN NAMEPLATES AND NOT. HIS OBJECTIVE IS TO FILL IN THE NAMEPLATES FIELDS. IT CAN MARK DATA MATRIX, QR CODE, LOGOS. IT CAN MARK ALPHANUMERIC CHARACTER WITH THE WINDOWS FONT, LINEAR TEXTS, ARC TEXTS, WITH OR WITHOUT FILLER FONTS. MARKING PRECISION LIKE THE LASER. IT CAN MAKE CHARACTER FROM 0,5 mm. 能夠打標絲印銘牌，它的目標是填充銘牌字段。 它能夠打標數據矩陣,二維碼和LOGOS。 它能夠打標配有windows字體的文字數字式字符，線性文字, 弧形文字，有或沒有填充字體。和激光打標精度一樣，它可以打標0.5mm以上的字體。 |

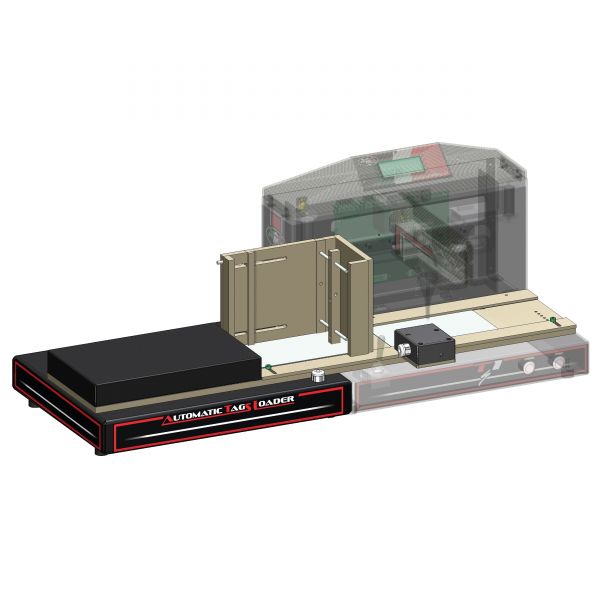

Possibility to add a adjustable automatic tags holder, from a dimensions of 20x20 to 100x80.This allow to mark up to 100 tags in sequence without need that the operator loads them.
可以加一個可調節自動標簽支架，尺寸從20X20到100x80.這樣可以不用操作員上料就可以有序標記高達100個標簽。
