ROCCIA(瑞卡）-HR3W水平下調試三輥卷板機 -
ROCCIA(瑞卡）-HR3W水平下調試三輥卷板機
- 生產廠商及品牌名稱ROCCIA (Italy)
- 設備型號及加工參數HR3WS
- 參考價格范圍
Roccia（瑞卡）公司是專業生產數控卷板機、型彎機、封頭旋壓機和數控法蘭機等鍛壓成型設備的世界一流廠家。Roccia既有標準設備，也可為客戶定制解決方案。其設計制造出的設備可加工板材的寬度從1~8米，厚度從1mm到300mm。

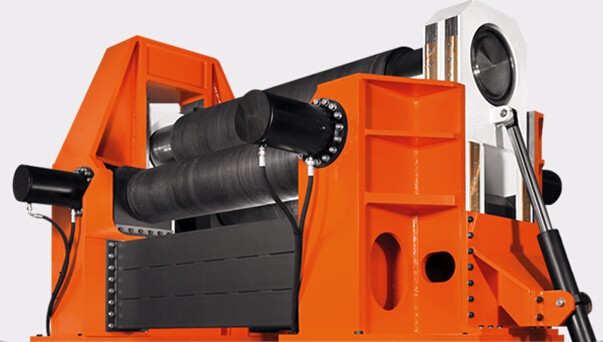

THE MOST ADVANCED 3 ROLLS BENDING MACHINE
3 roll variable axis plate bending machines are used for bending medium to thick plates. They are very precise and easy to use. There are advantages by using this system where the two side rolls move horizontally – left and right, while the top roll moves up and down. When feeding the material into the machine it does not tilt up like it would on a double pinch three roll bender, but stays parallel to the ground allowing easier and safer material handling. When positioning the side rolls at their farthest position, you can increase the rolling capacity byup to 50% more than on a traditional 3 or 4 roll bending machine. Three driving rolls offer full control over the bending process.
Technical Date:
設備型號 | 工件長度(M) | 彎曲厚度(mm) (5×Tp) | 預彎厚度(mm) (5×Tp) | 彎曲厚度(mm) (1.1×Tp) | 預彎厚度(mm) (1.1×Tp) | 上錕直徑 （mm） |
HR3W2006 | 2050 | 6 | 4 | 3.9 | 2.6 | 160 |
HR3W2010 | 2050 | 10 | 8 | 6.5 | 5.2 | 210 |
HR3W2018 | 2050 | 18 | 14 | 11.7 | 9.1 | 260 |
HR3W2025 | 2050 | 25 | 20 | 16.25 | 13 | 300 |
HR3W2040 | 2050 | 40 | 30 | 26 | 19.5 | 380 |
HR3W2050 | 2050 | 50 | 40 | 32.5 | 26 | 430 |
HR3W2080 | 2050 | 80 | 60 | 52 | 39 | 550 |
HR3W2506 | 2600 | 6 | 4 | 3.9 | 2.6 | 190 |
HR3W2510 | 2600 | 10 | 8 | 6.5 | 5.2 | 210 |
HR3W2516 | 2600 | 16 | 13 | 10.4 | 8.45 | 260 |
HR3W2525 | 2600 | 25 | 20 | 16.25 | 13 | 330 |
HR3W2535 | 2600 | 35 | 30 | 22.75 | 19.5 | 370 |
HR3W2540 | 2600 | 40 | 32 | 26 | 19.5 | 400 |
HR3W2550 | 2600 | 50 | 40 | 32.5 | 26 | 450 |
HR3W3006 | 3100 | 6 | 4 | 3.9 | 2.6 | 200 |
HR3W3008 | 3100 | 8 | 6 | 5.2 | 3.9 | 220 |
HR3W3013 | 3100 | 13 | 10 | 8.45 | 6.5 | 280 |
HR3W3020 | 3100 | 20 | 16 | 13 | 10.4 | 340 |
HR3W3032 | 3100 | 32 | 25 | 20.8 | 16.25 | 400 |
HR3W3045 | 3100 | 45 | 35 | 29.25 | 22.75 | 480 |
HR3W3060 | 3100 | 60 | 50 | 39 | 32.5 | 600 |
HR3W3080 | 3100 | 80 | 60 | 52 | 39 | 750 |
HR3W30110 | 3100 | 110 | 80 | 71.5 | 52 | 820 |
HR3W30125 | 3100 | 125 | 100 | 81.25 | 65 | 940 |
HR3W30150 | 3100 | 150 | 120 | 97.5 | 78 | 1000 |
HR3W4006 | 4100 | 6 | 4 | 3.9 | 2.6 | 240 |
HR3W4008 | 4100 | 8 | 6 | 5.2 | 3.9 | 270 |
HR3W4010 | 4100 | 10 | 8 | 6.5 | 5.2 | 320 |
HR3W4012 | 4100 | 12 | 10 | 7.8 | 6.5 | 340 |
HR3W4016 | 4100 | 16 | 14 | 10.4 | 9.1 | 380 |
HR3W4020 | 4100 | 20 | 16 | 13 | 10.4 | 410 |
HR3W4025 | 4100 | 25 | 20 | 16.25 | 13 | 460 |
HR3W4032 | 4100 | 32 | 25 | 20.8 | 16.25 | 510 |
HR3W4040 | 4100 | 40 | 32 | 26 | 20.8 | 580 |
