激光打標產品壽命長,維護簡單, 機身小巧，性能穩定,使用成本低,為您節約支出。已大量用在給電子元器 件、集成電路打商標型號、給印刷電路板打編號等。

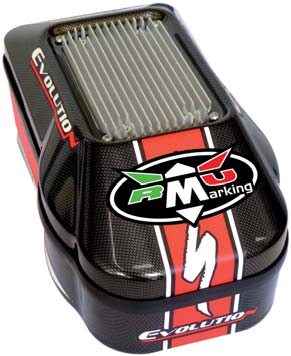

RMU offers the widest range of solutions in the ?eld of laser marking. All our galvo heads are auto tuned and digital, thus offering higher performance in speed and quality.Thanks to the LASER management software (CAD-based 2D) and the control electronics designed and built directly by RMU Engineers, we can develop any type of customization.
All of our line laser can also work without a dedicated PC. The program change can take place via USB key or LAN. Our server is seen as a network Hard Disk thus facilitating the integration and communication with management programs (which can directly create text ?les for editing data). In addition, an IP65 protected keypad (DO YOU MEAN KEYBOARD)is available to modify or edit the marking text.Finally, our self designed systems also allow on the ?y marking controlled by encoder, or constant speed without feedback.
RMU在激光打標領域可提供最廣泛的解決方案。我們的振鏡可數字化自動調諧，因而在打標速度與打標效果方面具有極高的性能。激光管理軟件（基于二維的CAD管理軟件）和控制電路由RMU專業工程師團隊研發與生產，這一優勢使我們可以為客戶提供個性化的服務。
沒有電腦，激光打標機也可正常工作。通過USB或局域網即可改變打標機原有的程序。我們的服務器可被視為一個網絡硬盤，這樣便于與管理程序進行通訊整合，管理程序可直接生成文本以編輯數據。此外，通過防護等級為IP65的按鍵（類似于鍵盤）即可編輯修改打標信息。最后，我們自己設計的系統可以通過編碼器控制打標機的垂直運動且無需反饋就可保持速度。

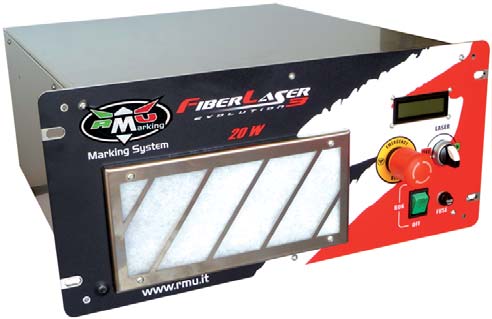

FIBER LASER/光纖激光打標機
Marking active fiber offers obvious advantages for maintenance and duration (in hours) of the laser. Through this technology, you can mark ABS, Acrylic, Aluminum, Anodized Aluminum, Copper, Brass, Carbide, Carbon, Iron, Ceramics, Gold, PA, PC, Phenolic, Platinum, PMA, POM, Steel, Stainless Steel, Titanium.
YAG LASER DIODE/二極管YAG激光打標機
The technology diode differing sources 1064 nm (IR), 532 nm (VIS) and 355 nm (UV). Through these technologies, you can mark ABS, Acrylic, Aluminum, Anodized Aluminum, Copper, Brass, Carbide, Carbon, Iron, Ceramics, Gold, PA, PC, Phenolic, Platinum, PMA, POM, Steel, Stainless Steel, Titanium.

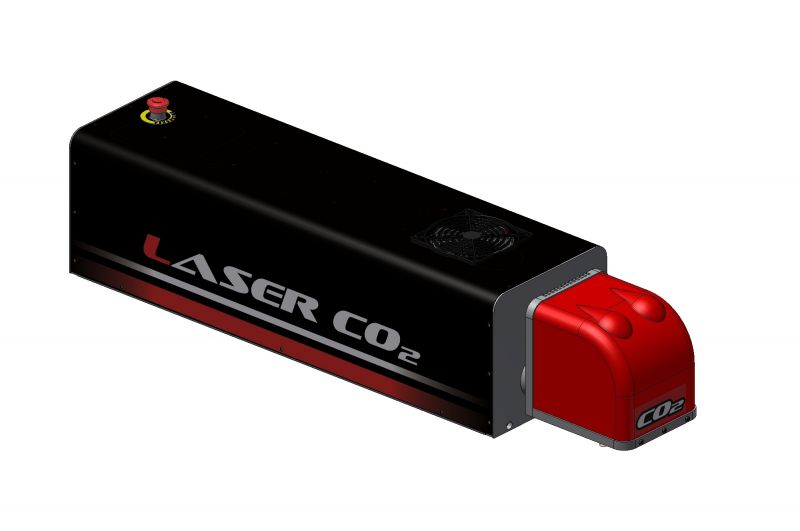

CO2 LASER/二氧化碳激光打標機
Our CO2 technology involves the use of heads and galvanometric system plotter. Technology for organic materials such as wood, plastics and resins, paper, textiles, rubber, marble and stone, acetate, acrylic, leather and many others.
光纖激光打標機 | CO2激光打標機 | 二極管 YAG激光打標機 | ||
Working rea 工作區域 |
mm | 70x70;112x112;180x180; 300x300* | 0x50;110x110;175x175; 350x350* | 70x70;112x112;180x180; 300x300* |
Power supply requirements/電源 | 230/115 Vac; 50 / 60 Hz; 16 A | |||
Nominal working powe 激光輸出額定功率 |
W |
10; 12; 20; 30 |
15; 25; 50; 100 |
50; 70; 100 |
Power consumption 整機功耗 |
W |
500 |
300……50000 |
800……1500 |
Nominal wavelength 額定波長 |
|
1064 |
10600 |
1064 |
Laser beam de?ection 激光光束偏轉 | Digitally controlled galvos 數控電流計 | |||
Processing speed 處理速度 |
mm/s | 6000 | ||
Modes of operation 操作模式 | Pulsed, Pulsed and CW, CW Modulable 脈沖型；脈沖型和連續型；可調節的連續型 | Modulable CW 可調節的連續型 | Pulsed and CW 脈沖型和連續型 | |
Working temperature 工作溫度 |
℃ |
0~35 | ||
Relative humidity 相對濕度 | RH% | 5 ... 95% | ||
Minimum beam diameter 最小光束直徑 |
mm |
0.022 |
0.16 |
0.022(min) |
Repetition rate/Modulation 重復頻率/調制 |
KHz |
1 ... 500 o CW | 100% up to 5kHz |
100 ... 500 |
Output power stability 輸出功率的穩定性 |
±5% |
±10% |
±5% | |
Cooling system 冷卻系統 | Air 空氣 | Air- Water 空氣-水 | Air- Water 空氣-水 | |
Red alignment laser 紅色激光校準儀 |
Standard/標準 | |||
Conformity norms 滿足的標準 | 23/72/89/336/EEC 2006/42/CE; 2006/95/CE; 2004/108/CE EN_60204-1(2006); EN_60825-1(2003) | 23/72/89/336/EEC 2006/42/CE; 2006/95/CE; 2004/108/CE EN_60204-1(2006); EN_60825-1(2003) | 23/72/89/336/EEC 2006/42/CE; 2006/95/CE; 2004/108/CE EN_60204-1(2006); EN_60825-1(2003) | |
*More versions are available on speci?c request/針對特殊需求可提供更多選擇

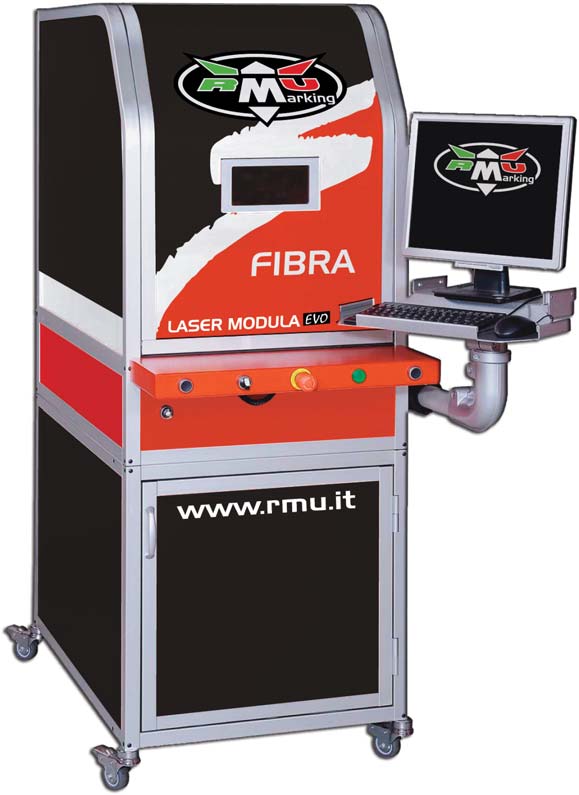

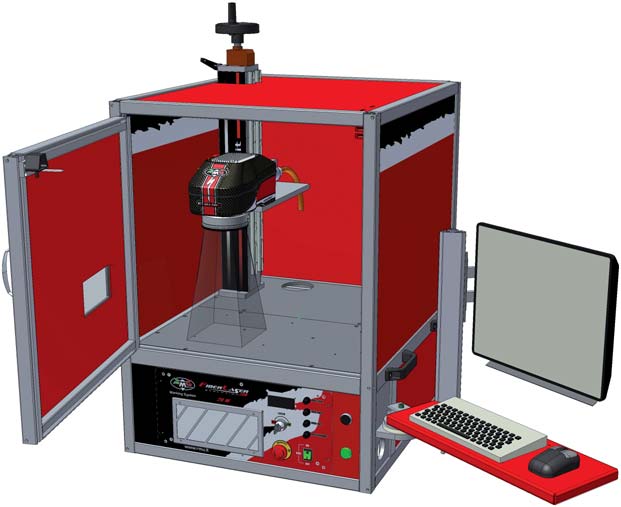

Models 型號 | MODULA EVO LINE | MUDULA EVO | MODULA EVO ROTANTE | MODULA EVO ROTANTE MAXI | MODULA EVO TAG | ||
Laser sources 激光源 | Fiber;CO2;DiodeYAG 光纖;二氧化碳;二極管YAG | ||||||
Overall dimensions總尺寸 | mm | on request 按要求 | 620 x 1100 x 1740 | 620 x 1100 x 1740 | 920 x 915 x 1840 | 1195 x 1014 x 1685 | |
Weight/重量 | Kg | 21 | 165 | 212 | 239 | 241 | |
Construction 結構 | Aluminium frame structure with sliding front door, laser safe viewing window 鋁制框架，正面配有手開門，帶有安全觀察窗 | Aluminium frame structure(1) with operation door, laser safe viewing window 鋁制框架(1)，正面配有手開門，帶有安全觀察窗 | |||||
Travel path vertical Z axis(2)/垂直Z軸移動距離(2) | mm | Optional(1)/選配(1):500 | Optional(1)/標配(1):500 | ||||
Optional axis 可選擇軸 | X;Y;W | X;Y | |||||
Travel path X axis X軸移動距離 | mm | Optional(1)/可選:200;300;400; 500 | |||||
Travel path Y axis Y軸移動距離 | mm | Optional(1)/可選:200;300;400; 500 | |||||
Clamping diameter W rotary axis/旋轉軸W夾具直徑 | mm | Optional(1)/ 選配(1):100 | - | ||||
Reclining rotary axis W 傾斜的旋轉W軸 | Optional(1)/選配(1) | - | |||||
Rotary table diameter 旋轉臺直徑 | mm | - | - | 500(1) | 800(1) | - | |
Wheels for displacement | - | Standard/標配 | |||||
Removable side panels/可拆卸側面板 | - | Optional(1)/選配(1) | |||||
Arrangement for suction system 顆粒手機系統 | - | Optional(1)/選配(1) | |||||
Suction/filtering system 吸附/過濾系統 | Optional(1)/可選(1) | ||||||
Safety light grids 光學保護罩 | - | Optional(1)/選配(1) | - | ||||
Laser safety class 激光安全等級 | Class 4 in accordance to EN60825-1 | ||||||
(1)：More dimensions and cusomized solutions are available/可提供客戶要求定制大小和解決方案
(2)：Available as fixed height, manual or automatic setting/固定高度，手動或自動設置
Software軟件
GENERAL INFORMATIONS基本信息
Proprietary software, Windows based
Windows系統為基礎的專業軟件
Just one software for all laser operations
一款軟件便可實現打標機所有功能
Operator and Supervisor functions
配有運行監控功能
Easy programming by history feature ?owchart
調用歷史流程圖以方便編程
Electronic manual and help on-line
電子手冊和在線幫助
Focus and peripheral axis automatically managed
自動對焦，自動調整外圍軸
Marking on movement
運動式打標
Programmable laser marking queues and priorities
可編程激光打標次序和優先級
Laser marking repetition function
重復打標功能
Laser marking editable parameters
可編輯打標參數
Automatic calculation of the marking time
自動計算打標時間
Marking program diagnosis and check available on display
可顯示打標程序檢查診斷情況
Flag Fields/標記內容
Serial numbers, batch of production, date, clock time, Working shifts, Automatic ?lling-out of marking programs taking the information from date-base in XLS Excel, MDB access, SQL SERVER format Marking of Bar-Codes, 2D, Data Matrix.
打標內容包括序列號，生產批次，日期，時間，輪班。可從EXCEL表格和數據庫ACCESS與SQL SERVER中提取二維條形碼、二維碼和Data Matrix碼信息提供給打標程序。
CAD and graphic features/CAD和圖形特點
Standard, arc-aligned and mirrored text, from True Type font with single or double line and hatched. Editino of texts properties, height, width, justi?cation, pitch, etc.
Automatic segmentation for marking on round surfaces with rotary axis W. Drawing and editing of lines, arches, circles and polygons. Editing and import of drawing ?les in DXF, BMP, TIF, JPG format. Possibility of marking only part of the displayed job. Cancel, Copy, Move, Rotate, Scale, Array, Strech, Trim, Extend, Trim o?, Round o?, Explode, Hatch, Insert, Block.
可從單線或雙線Ture Type矢量字體中提取標準形，對齊圓弧形或鏡像形的文本。可編輯文本屬性，高度，寬度，對齊和間距等。
采用旋轉W軸可自動分割需打標的圓形表面。可描繪和編輯線、圓弧、圓和多邊形。可輸入的圖形文件格式為DXF，BMP，TIF，JPG，JPEG。有可能只顯示打標的一部分，如取消、復制、移動、旋轉、比例、排列、拉長、裁剪、延伸、修剪、四舍五入、插入等。陣列，拉伸，修剪，延伸，填充，插入等
Communication and integration/通訊與集成
Communication ports RS-232, USB, TPC/IP 20 digital imputs +14 digital outputs Remote assistance system allows diagnosis of laser machine, programs and parameters status via web.
通訊可采用RS-232，USB，TPC/IP，20個數字輸入加14個數字輸出的遠程協助系統進行通信。通過這些通訊方式可實現對激光打標機的診斷，更改程序以及參數的實時監控
